How to Process Documents

This guide covers the document processing operations available in OntExtract.

Overview

After uploading documents, various processing operations can be applied to extract structured information. OntExtract preserves original documents unchanged—all results are stored as ProcessingArtifacts linked to source documents through PROV-O relationships.

Processing Operations

Operation Purpose Mode
LLM Text Cleanup Fix OCR errors, normalize spelling API-enhanced
Segmentation Split into paragraphs or sentences Standalone
Embeddings Generate vector representations Both
Entity Extraction Identify people, places, organizations Standalone
Temporal Extraction Find dates, periods, durations Standalone
Definition Extraction Locate concept definitions Standalone

LLM Text Cleanup

Use this for scanned or OCR'd historical documents with recognition errors.

When to Use

  • Documents with OCR character errors (rn → m, l → I)
  • Archaic spelling that needs normalization
  • Scanning artifacts (headers, page numbers in text)

How to Run

  1. Navigate to the document detail page
  2. Click the menu button (three dots) in the top-right
  3. Select Clean with LLM
  4. Review the suggested corrections
  5. Accept or modify changes
  6. Save the cleaned version

Note: LLM cleanup creates a new document version. The original is preserved. This operation requires an Anthropic API key configured in settings.

From Document Pipeline

Cleanup can also be triggered from the experiment's Document Pipeline:

  1. Go to Experiments > Select experiment > Document Pipeline
  2. Click the broom icon next to any document
  3. Follow the cleanup workflow

Segmentation

Split documents into logical sections for analysis.

Segmentation Methods

Method Description Best For
Paragraph NLTK-enhanced paragraph detection Most documents
Sentence NLTK Punkt tokenizer Fine-grained analysis

How to Run

  1. Go to the document or experiment's Document Pipeline
  2. Select documents to process
  3. Check Segmentation in Processing Operations
  4. Choose a segmentation method
  5. Click Run Selected Tools

Results

Segmentation creates TextSegment artifacts with: - Segment text content - Character-level position (start/end offsets) - Segment index within document

Auto-Dependency

When selecting Embeddings or Definition Extraction, the system automatically selects Paragraph Segmentation if it hasn't been run. This is because:

  • Embeddings create segment-level vectors when segments exist (more granular similarity search)
  • All extraction tools produce better results with structured text segments

Segmentation can be deselected for document-level processing only.

Embedding Generation

Create vector representations for semantic similarity search.

Embedding Methods

Method Description Best For
Local Standard sentence-transformers model General modern text
Period Aware Selects model based on document era/domain Historical or domain-specific text
OpenAI text-embedding-3-large (3072 dims) Highest accuracy (requires API key)

How to Run

  1. Go to Document Pipeline or document detail
  2. Check Embeddings in Processing Operations
  3. Select embedding method
  4. Click Run Selected Tools

Period-Aware Embeddings

For historical documents or specialized domains, use Period Aware embeddings. This automatically selects appropriate models based on:

  • Document publication date
  • Domain (scientific, legal, biomedical)
  • Detected archaic language patterns

See Period-Aware Embeddings for detailed information.

Results

Embeddings enable: - Semantic similarity search across segments - Finding related passages across documents - Clustering similar content

Vectors are stored in PostgreSQL using pgvector for efficient similarity queries.

Entity Extraction

Identify named entities using spaCy NLP models.

Entity Types

  • PERSON - People, including fictional
  • ORG - Organizations, companies, agencies
  • GPE - Geopolitical entities (countries, cities)
  • DATE - Dates and periods
  • WORK_OF_ART - Titles of works

How to Run

  1. Select documents in Document Pipeline
  2. Check Entity Extraction in Processing Operations
  3. Click Run Selected Tools

Results

Entity extraction creates artifacts with: - Entity text and type - Character positions in source - Confidence scores

Note: Accuracy depends on domain alignment with training corpora. Historical and technical texts may require validation.

Definition Extraction

Extract term definitions using pattern matching with strict validation.

Approach

OntExtract uses pattern matching to identify definitions in text:

  1. Zero-shot classification (optional, disabled by default)
  2. Uses facebook/bart-large-mnli model (~1.6GB)
  3. Too slow on CPU for large documents (10+ minutes per document)
  4. Enable with environment variable: ENABLE_ZERO_SHOT_DEFINITIONS=true

  5. When enabled, scores sentences for confidence boosting

  6. Pattern matching (default, fast) - Detects 8 definition types:

  7. explicit_definition: "X is defined as Y"
  8. explicit_reference: "X refers to Y"
  9. meaning: "X means Y"
  10. copula: "X is a Y"
  11. acronym: "IRA (Information Retrieval Agent)" with strict validation
  12. also_known_as: "X (also known as Y)"
  13. ie_explanation: "X (i.e., Y)"

  14. appositive: Dependency parsing for noun appositives

  15. Strict acronym validation:

  16. Pattern: 2-6 uppercase letters with capitalized word expansion
  17. Requires expansion first letters to match acronym (e.g., "IRA" must expand to words starting with I, R, A)
  18. Rejects expansions containing years (likely citations)

  19. Eliminates nonsense patterns

  20. Quality filters:

  21. Reject academic citations (e.g., "et al., 2015")
  22. Reject reference lists (year ranges, multiple years)
  23. Reject terms with more than 3 words
  24. Length validation (10-200 characters)

How to Run

  1. Select documents in Document Pipeline
  2. Check Definition Extraction in Processing Operations
  3. Click Run Selected Tools

Results

Definition extraction creates artifacts with: - Term being defined - Definition text - Pattern type (explicit, acronym, etc.) - Confidence score (0.65-0.90 depending on pattern) - Character positions in source document - Source sentence for context

Results are labeled "Auto" in the UI with a "Pattern" source badge. If zero-shot is enabled, definitions may show "ZeroShot" badge.

Note: Definition extraction works best on documents that explicitly define terminology, such as glossaries, textbook introductions, or standards documents. Research papers that use but do not define terms may return few or no results.

Batch Processing

Process multiple documents efficiently:

  1. Go to Experiments > Select experiment > Document Pipeline
  2. Use checkboxes to select multiple documents
  3. Choose operations to apply
  4. Click Run Selected Tools

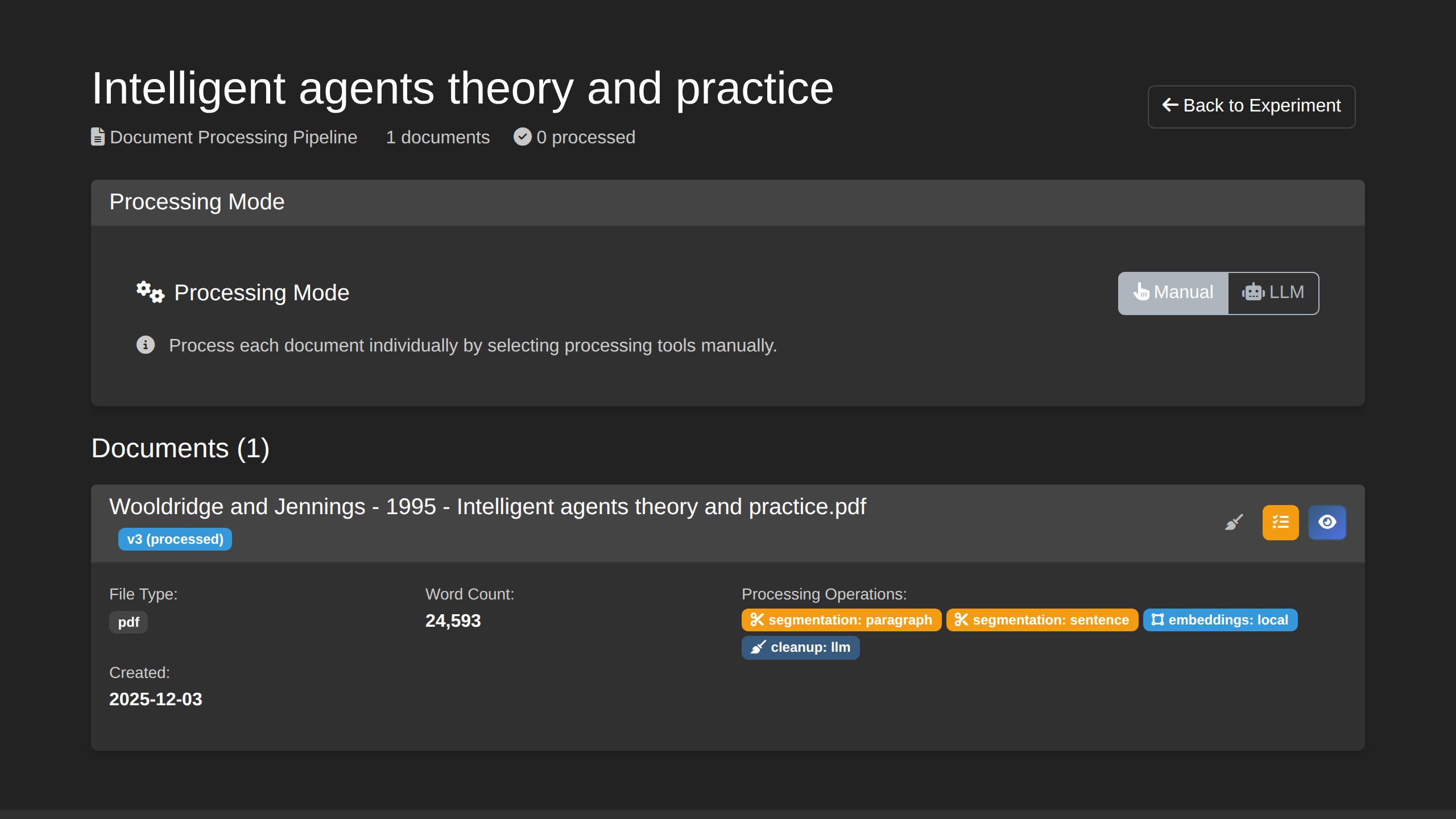

Document Pipeline

Operations run in parallel where possible. Progress is tracked in the interface.

Processing Without API Costs

Run Local Tools processes documents using only local NLP libraries: - spaCy for entity extraction - NLTK for sentence tokenization - sentence-transformers for embeddings

No external API calls are made, enabling offline operation.

Viewing Results

After processing, view results from the experiment detail page:

  1. Go to Experiments > Select the experiment
  2. Expand the View Results section
  3. Click a result type:
  4. Definitions - Extracted term definitions
  5. Entities - Named entities and concepts
  6. Embeddings - Generated vectors and similarity data
  7. Segments - Document segments
  8. Temporal - Extracted dates and periods

Result Details

Each result page shows: - Extracted items grouped by document - Source text and character positions - Confidence scores and extraction method - Links back to source documents

PROV-O Provenance

All processing operations create PROV-O provenance records:

  • wasDerivedFrom - Links artifacts to source documents
  • wasGeneratedBy - Connects artifacts to generating activities
  • wasAssociatedWith - Maps operations to tool versions

This enables complete reproducibility—any result can be traced back to its source to understand exactly how it was generated.

Troubleshooting

Processing Stuck

  • Check Celery worker status
  • Verify Redis connection
  • Review application logs

No Results Generated

  • Ensure document has text content
  • Check that source document exists
  • Verify processing completed (no errors in logs)

Embedding Errors

  • For OpenAI: verify API key in settings
  • For local: check sentence-transformers installation
  • Ensure document has been segmented first
